Hospital doors
HB-TAITS2
Simple sealing automatic telescopic sliding door in stainless steel
The hospital doors HB-TAITS2 are simple sealing telescopic automatic doors in stainless steel for openings up to 2,000 mm, actuated by operators with brushless motor (guaranteed 6 years) which ensures a significant energy saving and a longer life.
App
Door control parameters can be quickly entered and updated using the LabelTools app.
Automation
- Automation on 78 mm transom, aluminium cover accessible for inspection, ABS side caps
- Aluminium alloy covering unit, 210x120H mm, with release and support articulation
- Automation for one or two sliding leaves
- Maximum load capacity of 400 kg for a double-leaf door or 300 kg for a single-leaf door
- Maximum automation length: 6,500 mm.
- Aluminium alloy slideway rail mounted on a sound-dampening rubber gasket
- BRUSHLESS motor, reversible gearbox.
- The movement is driven by an antistatic rubber timing belt with Kevlar sides.
- Double-wheel trolleys with anti-derailment device
- Control unit with self-learning microprocessor and automatic management of safety procedures (anti-crushing, direction reversal, low-speed safety movement)
The standard supply includes:
- ETH/T automation with BRUSHLESS motor
- Leaf panel complete with dedicated frames and gaskets
- Aluminium covering unit, raw-aluminium version
- Digital selector
- Safety sensors (Qty. 2)
Options
- Vision panels
- Handles
- Bump bands
- Pulse devices
- Opening safety sensors
Usage
Operating rooms, surgeries, laboratories, emergency rooms, X-ray rooms, intensive care, aseptic environments (with high bacteriological-virological protection)

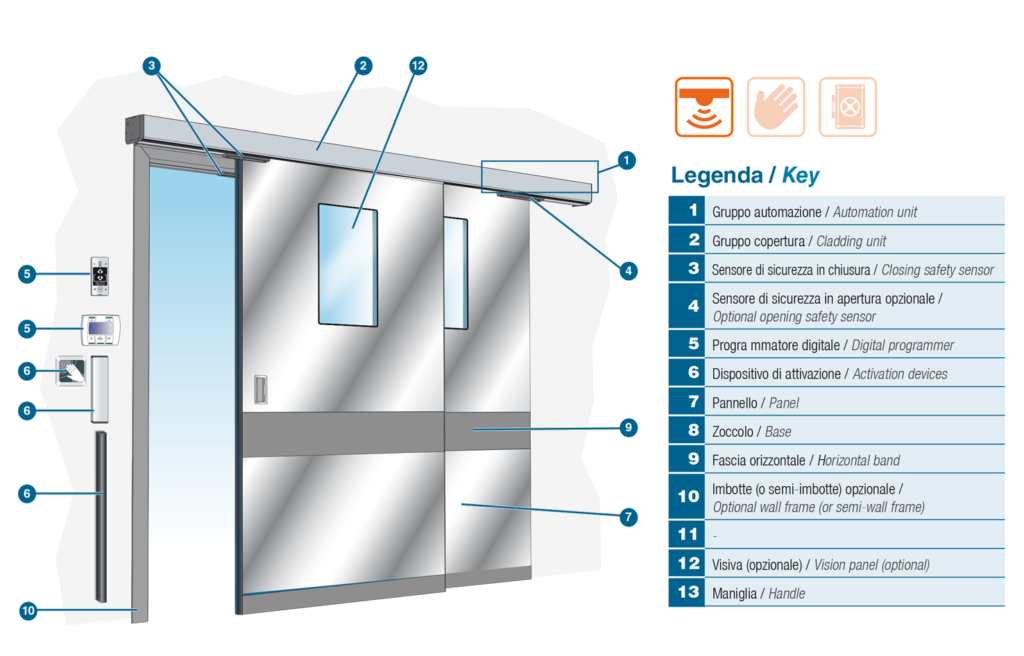

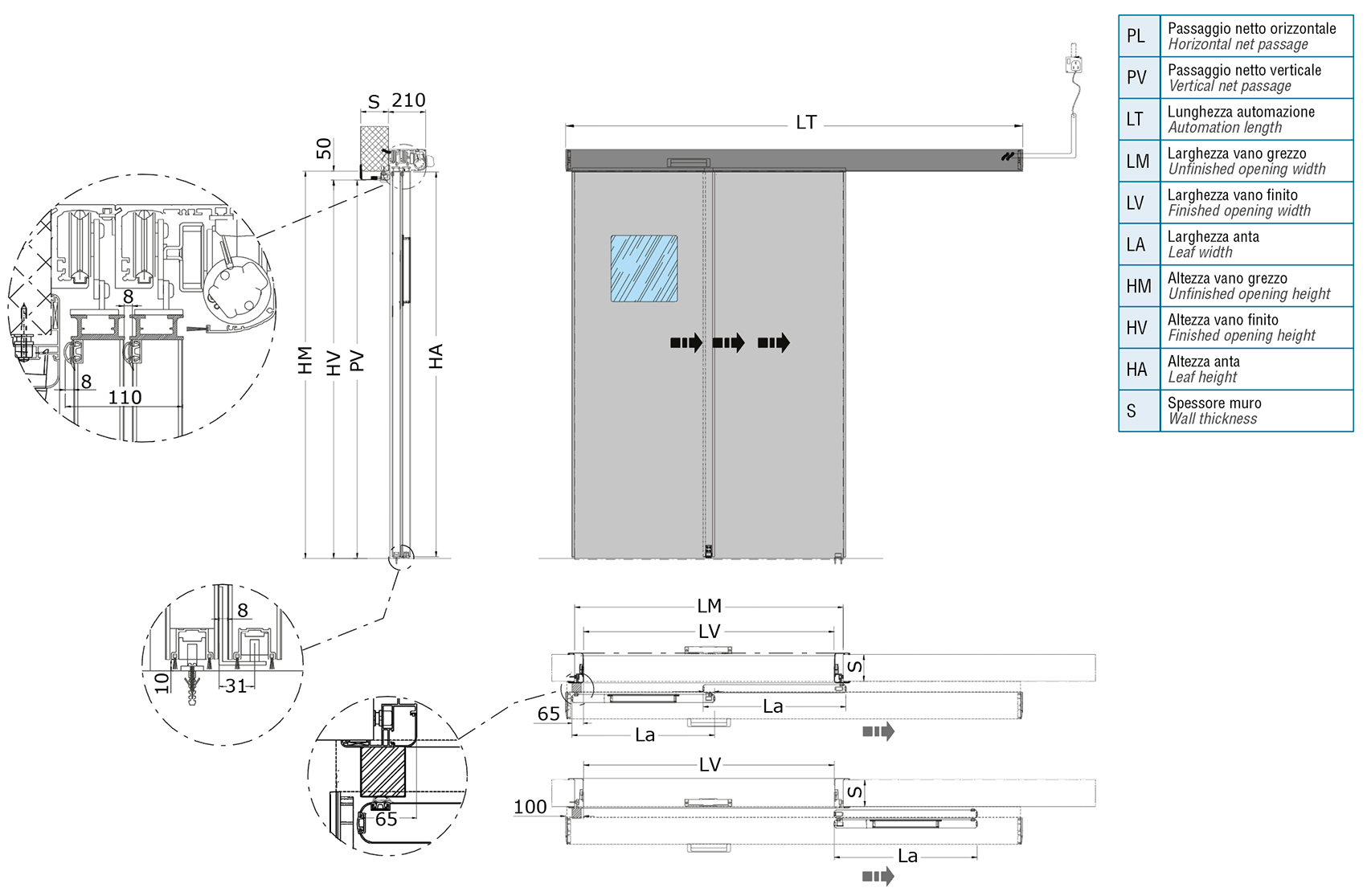

Dimensions and Components
